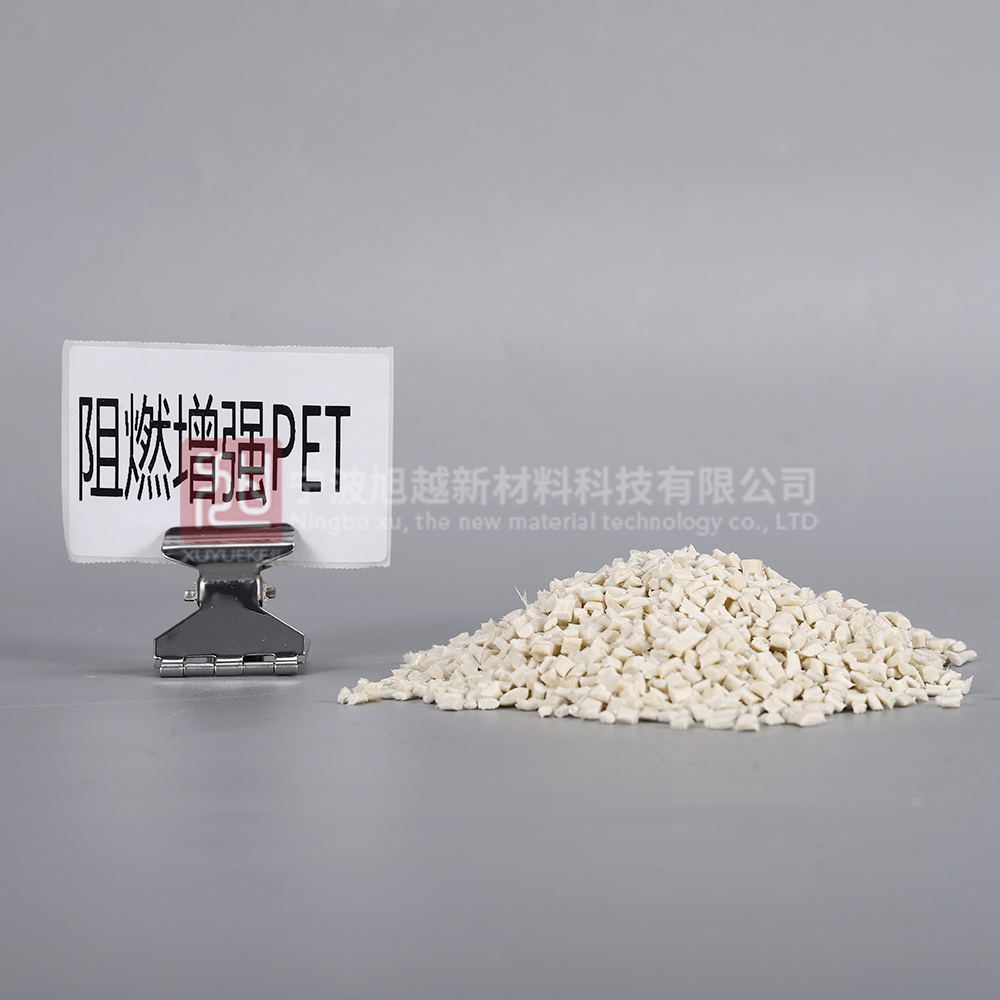

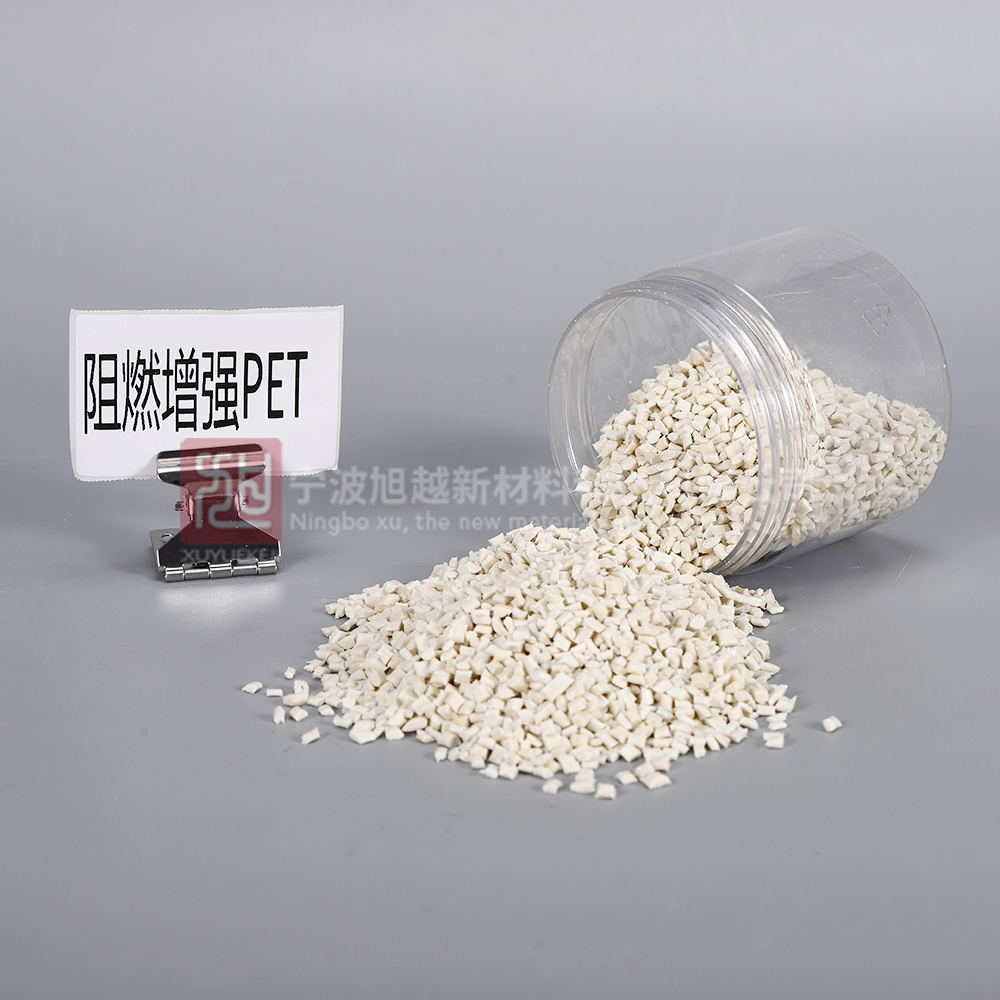

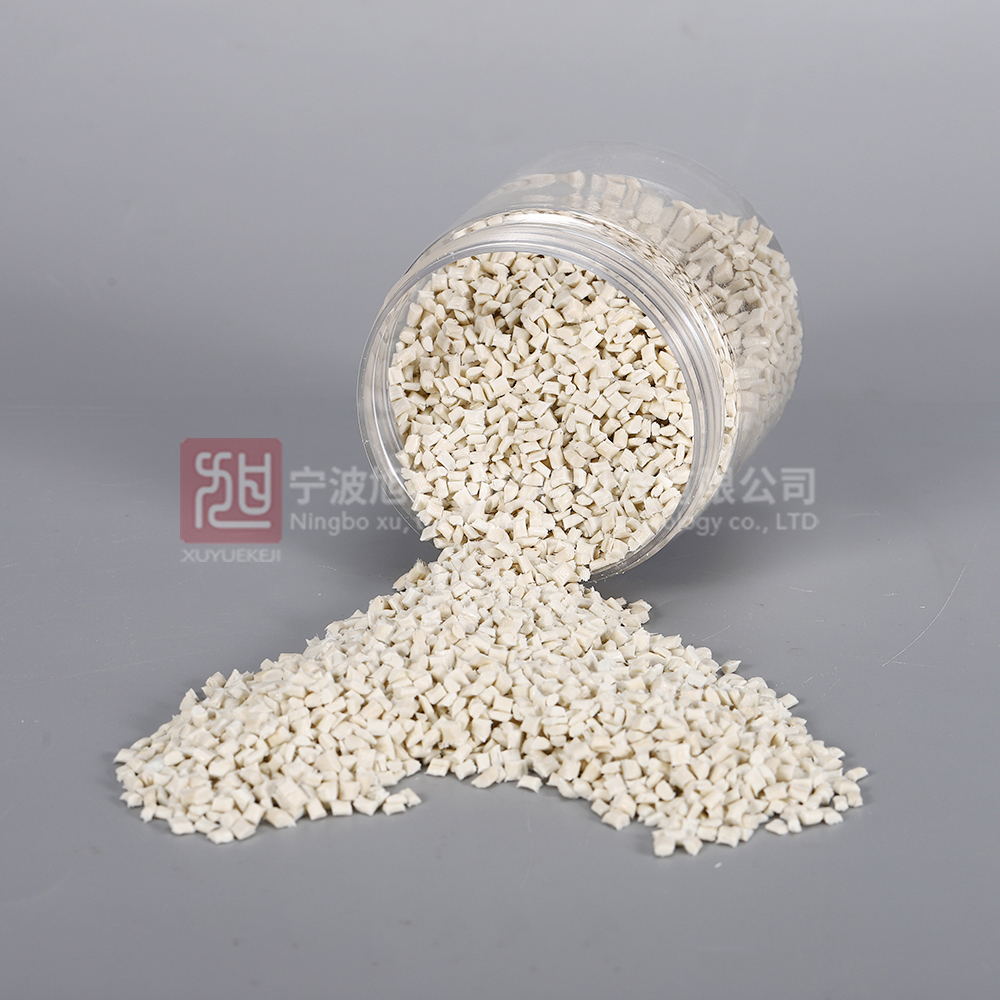

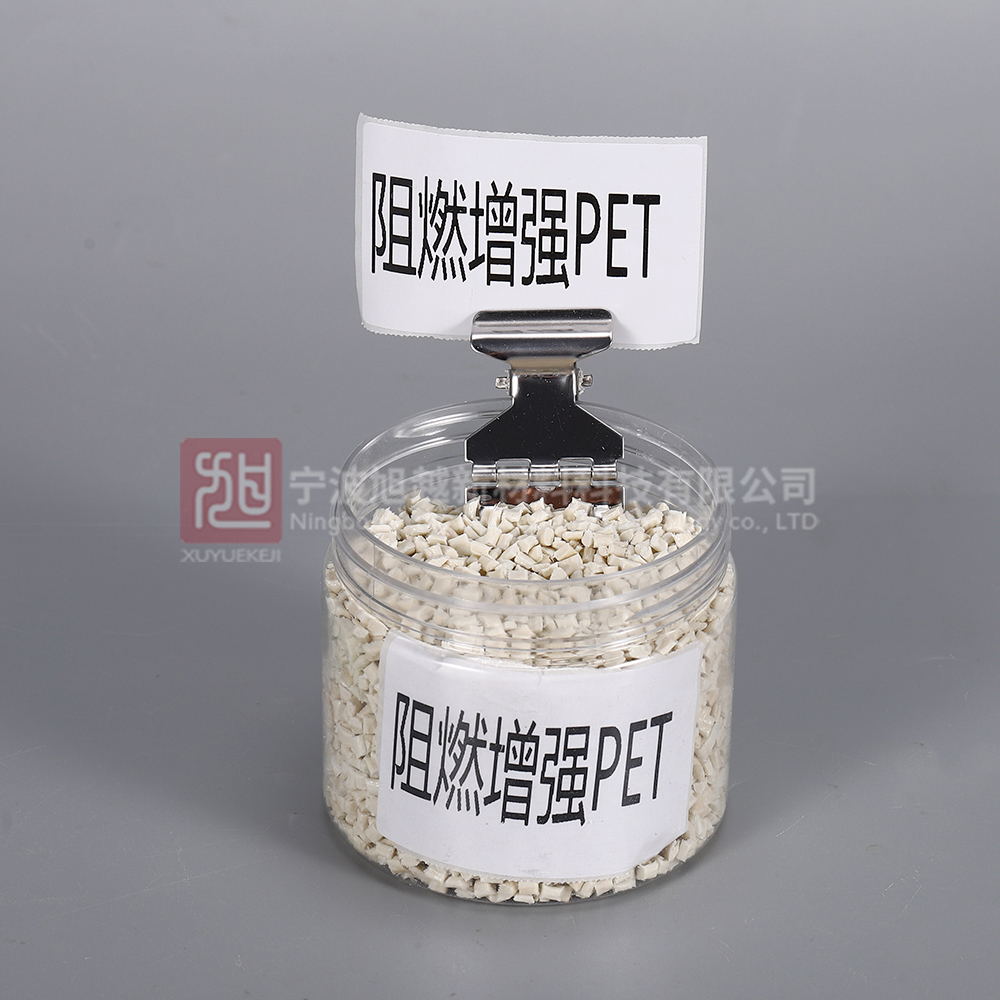

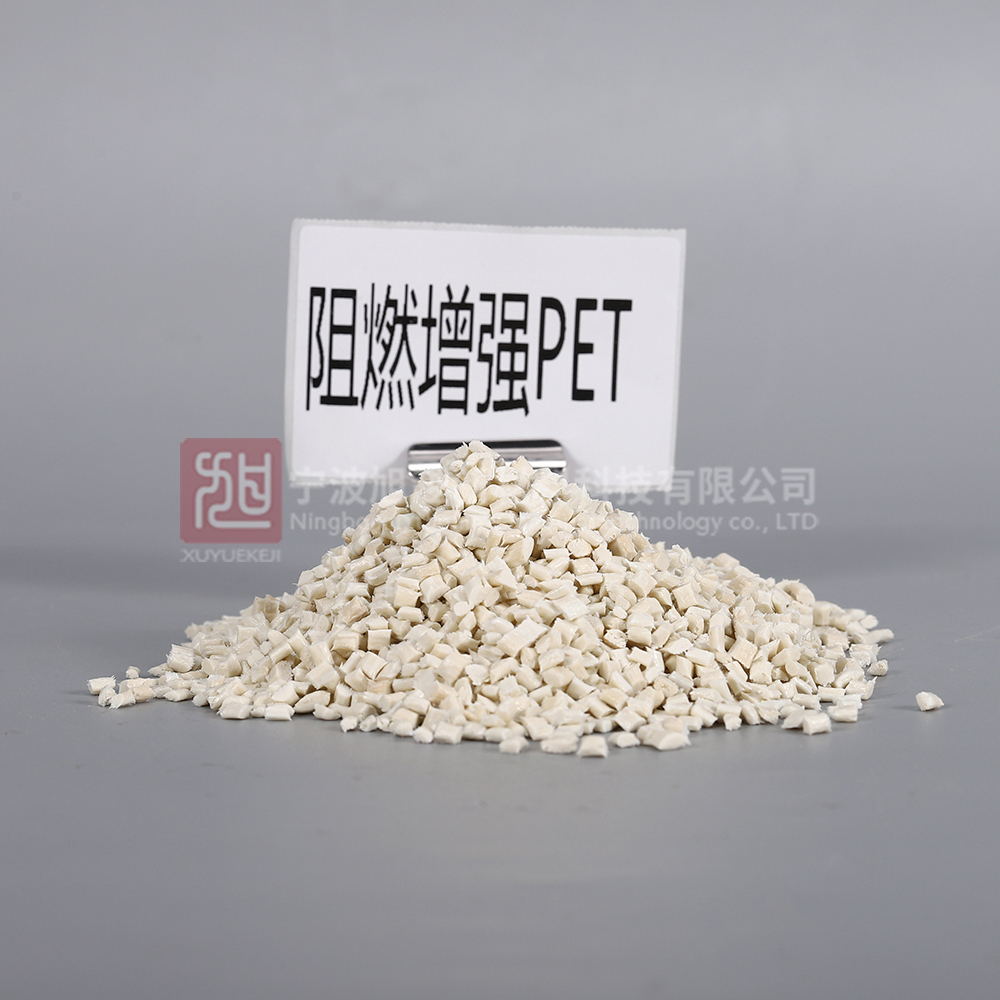

Name: flame retardant enhancement PET
Material: PET
Scope of use: flame retardant enhancement PET (PET0G30X)
|
Basic information |
||||||||||
|
Material name |
Flame retardant reinforced PET |
Brand |
PET0G30X2 |
|||||||
|
additives |
/ |
Appearance |
true color |
|||||||
|
Features |
|
|||||||||
|
Application fields |
/ |
|||||||||
|
Product properties |
||||||||||
|
Test items |
Test methods |
Units |
Test data |
|||||||
|
Mechanical properties |
Tensile strength |
GB/T 1040-2006 |
MPa |
126 |
||||||
|
Elongation at Break |
% |
2.9 |
||||||||
|
Flexural Strength |
GB/T 9341-2008 |
MPa |
161 |
|||||||
|
Flexural Modulus |
MPa |
6094 |
||||||||
|
Izod impact strength (V-notched) |
GB/T 1843-2008 |
kJ/m2 |
10.6 |
|||||||
|
Thermal properties |
Heat Deflection Temp（Tff1.8） |
GB/T 1634.2-2008 |
℃ |
202 |
||||||
|
other |
Density |
GB/T 1033-2008 |
g/cm3 |
1.60 |
||||||
|
Melt Mass Flow Rate(270℃, 2.16kg) |
GB/T 3682-2000 |
g/10min |
twenty two |
|||||||
|
Glow wire temperature |
GB/T 5169.10-2017 |
℃ |
850 (non-flammable) |
|||||||
|
Glow wire temperature |
℃ |
960 |
||||||||
|
Flame retardant grade |
UL 94 |
/ |
V-0 |
|||||||
|
Ash content |
GB/T 9345-2008 |
% |
29.0 |
|||||||
|
Mold shrinkage |
Machine |
GB/T 17037-2003 |
% |
0.2~0.4 |
||||||
|
Transverse |
% |
0.3~0.5 |
||||||||
|
Injection molding process |
||||||||||
|
Drying temperature |
(130~150)℃ |
Drying time |
(4~6)h |
|||||||
|
Injection temperature |
(250~275)℃ |
Mold temperature |
/℃ |
|||||||
